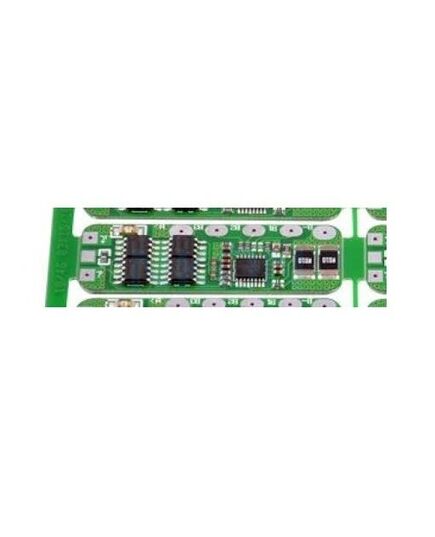

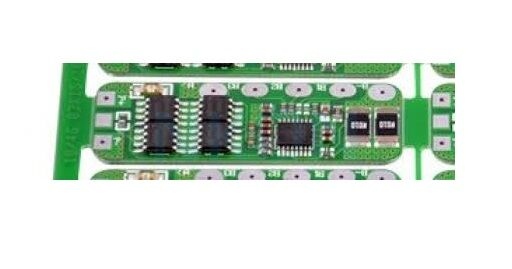

Lithium battery 4S Bms / Pcb 4Mos - Ebd02 - AB - 6A - 14.4V
Χαρακτηριστικά
- Overcharge detection voltage(VCU): 4.275±0.05V
- Overcharge detection delay time: 1.0±0.5m S
- Overcharge release voltage: 4.075±0.05V
- Under-discharge detection voltage(VDD): 2.30±0.10V
- Under-discharge detection delay time: 1.0±0.5 mS
- 3.6 Under-discharge release voltage: 2.70±0.1V
- Excess current threshold (IEC): 10A-15A
- Maximum Continuous Current: 4-6A
- Short detection delay time: MAX.18mS
- Supply current (V cell=3.5V): MAX.15μA
- Standby current (V cell=1.8v): MAX. 1uA
- PCB total resister: MAX. 40mΩ
